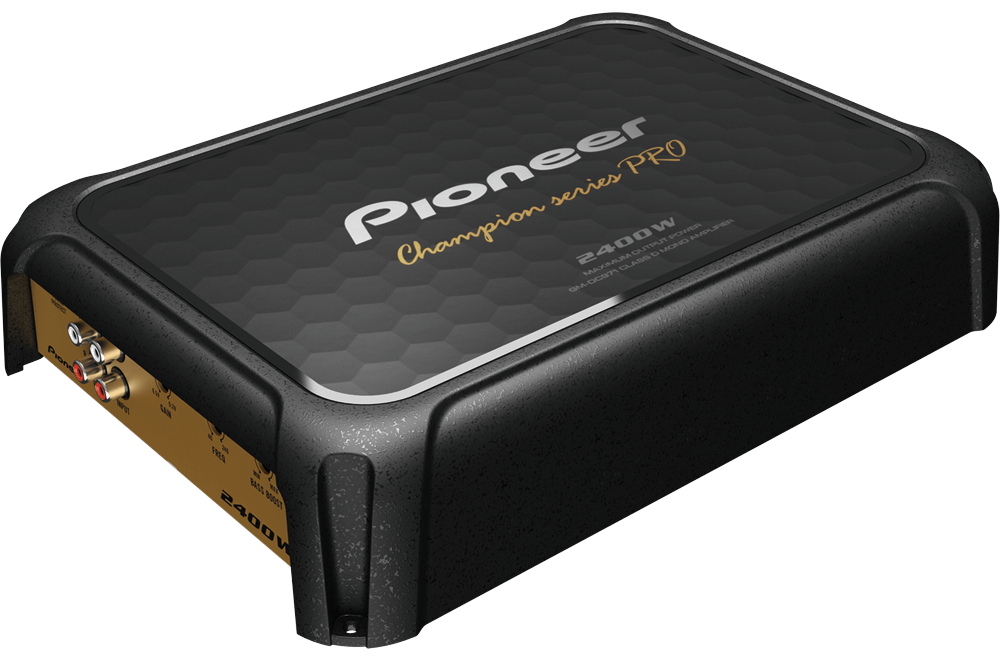

آمپلی فایر مونو پایونیر مدل DC971

GENERAL

Amplifier ClassClass D

No. of ChannelsMono

Max.power output1,000 W x 1 (4Ω) 1,600 W x 1 (2Ω) 2,400 W x 1 (1Ω)

RMS power output500 W x 1 (4Ω) 800 W x 1 (2Ω) 1,200 W x 1 (1Ω)

Frequency Response10 Hz to 240 Hz

Impedance1Ω to 8Ω

Total Harmonic Distortion(THD)<0.5% (100 Hz)

S/N Ratio100 dB

Speaker Level InputYes

Automatic Signal Sensing and Turn-OnYes

Crossover TypeVariable LPF

Crossover Frequency40 Hz to 240 Hz

Bass Boost Frequency56 Hz

Baas Boost Level0 dB to 18 dB

Bass Boost RemoteNo

Dimensions302 mm x 60 mm x 215 mm
